Semi-Auto Strapping Machines [S-555N]
Description
Extremely low in noise. Strap tension adjustable from low to extremely high. With infinitely variable strap feed. Semi-automatic strapping machine for use with polypropylene strapping. Heavy duty construction. Simple, safe, and user-friendly operation. Movable, with large table area, high-capacity strap reel and stainless-steel table. Two locking castors, to ensure safe operation.
Features
• Reliable tension system :

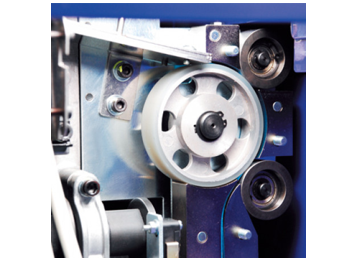

Big main roller driven by DC motor
Wide tension range from 3 to 40 KGs
• Various strap thickness and width workable:
Width: 5mm to 15 mm
Thickness: 0.4 mm
• Less mechanical parts, easy maintenance

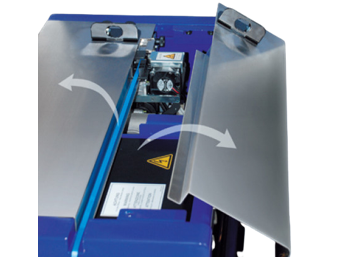

• Easy to access track guide and main roller
• Front side tension adjustment with indicator
• PCB: Plug and play system, easy replacement

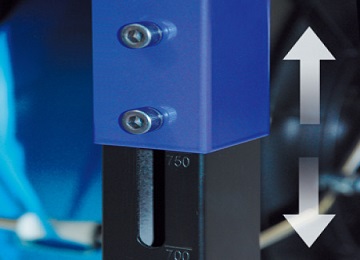

• Table height adjustable from 750mm to 830mm
Specification
| Cycle Time |
2 sec./strap |
| Tension Range | 3~40 kgs |
| Strap Width | 5, 6, 9, 12, 15.5 mm adjustable |
| Sealing Method | Heating element |
| Reel Inside Diameter | 200, 230, 280 mm specified |
| Power Supply | 230V 50/60HZ, 1PH |
| Table Height | 750~830mm adjustable |
| Power Consumption | 0.45 kw |
| Machine Dimension | 845.L x 430.W x750.H mm |
| Machine Weight | 65 kgs |
